精准尺寸，专业工程设计
DIN910 and JB/ZQ4451 DIN910 and JB/ZQ4450
碳钢+丁晴(VHR 85-90)
304/316不锈钢
品牌互换：DIN910 and JB/ZQ4451

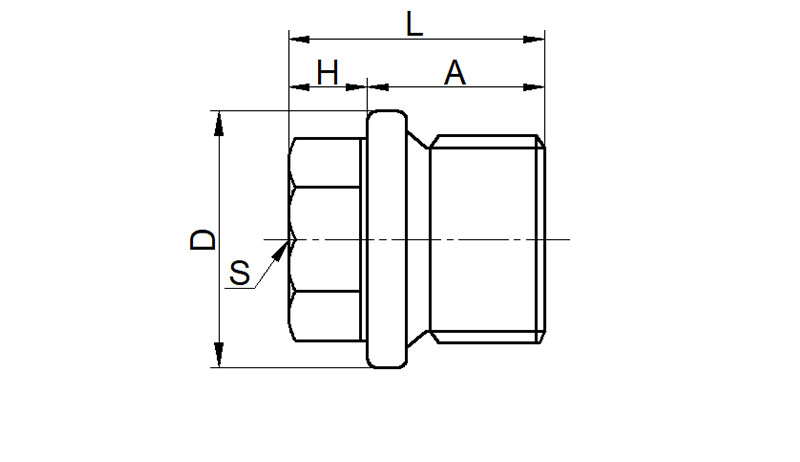

| 代号 | 螺纹 | 对边S | 六角高度H | 外圆D | 牙长A | 总长L |
| 910 | G1/8x28 | 10 | 6 | 14 | 8 | 17 |
| 910 | G1/4x19 | 13 | 6 | 18 | 12 | 21 |
| 910 | G3/8x19 | 17 | 6 | 22 | 12 | 21 |
| 910 | G1/2x14 | 19 | 8 | 26 | 14 | 26 |
| 910 | G3/4x14 | 24 | 10 | 32 | 16 | 30 |
| 910 | G1x11 | 27 | 11 | 39 | 16 | 32 |
| 910 | G1-1/4x11 | 30 | 12 | 49 | 16 | 33 |
| 910 | G1-1/2x11 | 30 | 12 | 55 | 16 | 33 |
| 910 | G2x11 | 36 | 15 | 68 | 20 | 40 |
品牌互换： DIN910 and JB/ZQ4450
| 代号 | 螺纹 | 对边S | 六角高度H | 外圆D | 牙长A | 总长L |
| 910 | M10X1 | 10 | 6 | 14 | 8 | 17 |
| 910 | M12X1.5 | 13 | 6 | 17 | 12 | 21 |
| 910 | M14X1.5 | 13 | 6 | 19 | 12 | 21 |
| 910 | M16X1.5 | 17 | 6 | 21 | 12 | 21 |
| 910 | M18X1.5 | 17 | 8 | 23 | 12 | 24 |
| 910 | M20X1.5 | 19 | 8 | 25 | 14 | 26 |
| 910 | M22X1.5 | 19 | 8 | 27 | 14 | 26 |
| 910 | M24X1.5 | 22 | 9 | 29 | 14 | 27 |
| 910 | M26X1.5 | 24 | 10 | 31 | 16 | 30 |
| 910 | M27X1.5 | 24 | 10 | 32 | 16 | 30 |
| 910 | M30X1.5/2 | 24 | 10 | 36 | 16 | 30 |
| 910 | M30X1.5 | 24 | 10 | 36 | 16 | 30 |
| 910 | M30X2 | 24 | 10 | 36 | 16 | 30 |
| 910 | M33X2 | 27 | 11 | 39 | 16 | 32 |
| 910 | M36X1.5 | 27 | 11 | 42 | 16 | 32 |
| 910 | M36X2 | 27 | 11 | 42 | 16 | 32 |
| 910 | M42X1.5 | 30 | 12 | 49 | 16 | 33 |
| 910 | M45X1.5 | 30 | 12 | 52 | 16 | 33 |
| 910 | M45X2 | 30 | 12 | 52 | 16 | 33 |
| 910 | M48X2 | 30 | 12 | 55 | 16 | 33 |
| 910 | M52X2 | 30 | 12 | 60 | 16 | 33 |
| 910 | M60X2 | 36 | 15 | 68 | 20 | 33 |
