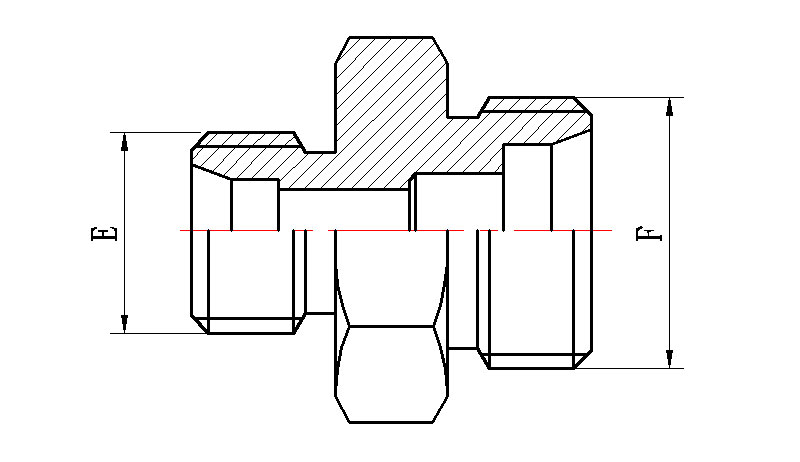

1C,1D,1C-RN,1D-RN
35#碳钢 45#碳钢
电镀蓝白锌/电镀锌镍合金/表面发黑
| 代号 | 螺纹 | 管子外径 | 尺寸 | 压力等级 |
| 1C-12-14 |
E:M12X1.5F:M14X1.5 |
D1=6D2=8 |
L1=40 l1=11S1=14S2=15S3=17 |
31.5轻系列L |
| 1C-12-16 |
E:M12X1.5F:M16X1.5 |
D1=6D2=10 |
L1=41 l1=12S1=17S2=15S3=19 |
|
| 1C-12-18 |
E:M12X1.5F:M18X1.5 |
D1=6D2=12 |
L1=42 l1=13S1=19S2=15S3=22 |
|
| 1C-14-16 |
E:M14X1.5F:M16X1.5 |
D1=8D2=10 |
L1=41 l1=13S1=17S2=17S3=19 |
|
| 1C-14-18 |
E:M14X1.5F:M18X1.5 |
D1=8D2=12 |
L1=42 l1=13S1=19S2=17S3=22 |
|
| 1C-16-18 |
E:M16X1.5F:M18X1.5 |
D1=10D2=12 |
L1=43 l1=14S1=19S2=19S3=22 |
|
| 1C-16-22 |
E:M16X1.5F:M22X1.5 |
D1=10D2=15 |
L1=44.5 l1=15S1=24S2=19S3=27 |
|
| 1C-16-26 |
E:M16X1.5F:M26X1.5 |
D1=10D2=18 |
L1=46 l1=15.5S1=27S2=19S3=32 |
|
| 1C-18-22 |
E:M18X1.5F:M22X1.5 |
D1=12D2=15 |
L1=44.5 l1=15S1=24S2=22S3=27 |
|
| 1C-18-26 |
E:M18X1.5F:M26X1.5 |
D1=12D2=18 |
L1=46 l1=15.5S1=27S2=22S3=32 |
|
| 1C-18-30 |
E:M18X1.5F:M30X1.5 |
D1=12D2=22 |
L1=48 l1=17.5S1=32S2=22S3=36 |
|
| 1C-22-26 |
E:M22X1.5F:M26X1.5 |
D1=15D2=18 |
L1=47.5 l1=16.5S1=27S2=27S3=32 |
16轻系列L |
| 1C-22-30 |
E:M22X1.5F:M30X1.5 |
D1=15D2=22 |
L1=49.5 l1=18.5S1=32S2=27S3=36 |
|
| 1C-26-30 |
E:M26X1.5F:M30X1.5 |
D1=18D2=22 |
L1=50 l1=18S1=32S2=32S3=36 |
|
| 1C-26-36 |
E:M26X1.5F:M36X2 |
D1=18D2=28 |
L1=51.5 l1=19S1=41S2=32S3=41 |
|
| 1C-30-36 |
E:M30X2F:M36X2 |
D1=22D2=28 |
L1=53.5 l1=21S1=41S2=36S3=41 |
|
| 1C-30-45 |
E:M30X2F:M45X2 |
D1=22D2=35 |
L1=58.5 l1=21S1=46S2=36S3=50 |
|
| 1C-36-45 |
E:M36X2F:M45X2 |
D1=28D2=35 |
L1=59 l1=21S1=46S2=41S3=50 |
|
| 1D-14-16 |
E:M14X1.5F:M16X1.5 |
D1=6D2=8 |
L1=47 l1=18S1=17S2=17S3=19 |
63重系列S |
| 1D-14-18 |
E:M14X1.5F:M18X1.5 |
D1=6D2=10 |
L1=48 l1=17.5S1=19S2=17S3=22 |
|
| 1D-14-20 |
E:M14X1.5F:M20X1.5 |
D1=6D2=12 |
L1=50 l1=19.5S1=22S2=17S3=24 |
|
| 1D-16-18 |
E:M16X1.5F:M18X1.5 |
D1=8D2=10 |
L1=48 l1=17.5S1=19S2=19S3=22 |
|
| 1D-16-20 |
E:M16X1.5F:M20X1.5 |
D1=8D2=12 |
L1=50 l1=19.5S1=22S2=19S3=24 |
|
| 1D-18-20 |
E:M18X1.5F:M20X1.5 |
D1=10D2=12 |
L1=51 l1=19S1=22S2=22S3=24 |
|
| 1D-18-22 |
E:M18X1.5F:M22X1.5 |
D1=10D2=14 |
L1=54 l1=20.5S1=24S2=22S3=27 |
|
| 1D-18-30 |
E:M18X1.5F:M30X2 |
D1=10D2=20 |
L1=59.5 l1=22S1=32S2=22S3=36 |
|
| 1D-20-22 |
E:M20X1.5F:M22X1.5 |
D1=12D2=14 |
L1=54 l1=20.5S1=24S2=24S3=27 |
40重系列S |
| 1D-20-24 |
E:M20X1.5F:M24X1.5 |
D1=12D2=16 |
L1=54 l1=20S1=27S2=24S3=30 |
|
| 1D-20-30 |
E:M20X1.5F:M30X2 |
D1=12D2=20 |
L1=59.5 l1=22S1=32S2=24S3=36 |
|
| 1D-22-24 |
E:M22X1.5F:M24X1.5 |
D1=14D2=16 |
L1=57 l1=21.5S1=27S2=27S3=30 |
|
| 1D-24-30 |
E:M24X1.5F:M30X2 |
D1=16D2=20 |
L1=62.5 l1=23S1=32S2=30S3=36 |
|
| 1D-24-36 |
E:M24X1.5F:M36X2 |
D1=16D2=25 |
L1=67.5 l1=25.5S1=41S2=30S3=46 |
|
| 1D-30-36 |
E:M30X2F:M36X2 |
D1=20D2=25 |
L1=71 l1=25.5S1=41S2=36S3=46 |
|
| 1D-30-42 |
E:M30X2F:M42X2 |
D1=20D2=30 |
L1=74 l1=26S1=46S2=36S3=50 |
|
| 1D-36-42 |
E:M36X2F:M42X2 |
D1=25D2=30 |
L1=77 l1=26.5S1=46S2=46S3=50 |
|
| 1D-42-62 |
E:M42X2F:M62X2 |
D1=30D2=38 |
L1=86.5 l1=28.5S1=55S2=50S3=60 |
31.5重系列S |
| 注：如需带卡套及卡套螺母整套订货，请在代号后面加“RN”,如1C-30-36RN | ||||
